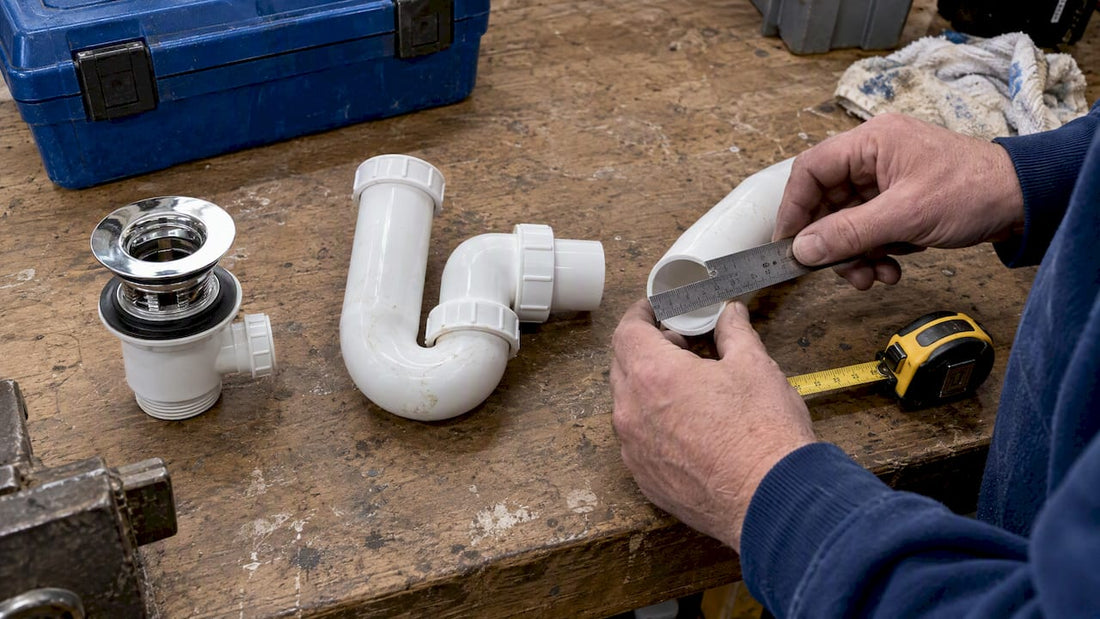

Installer measuring basin waste pipe fittings

Avoid Returns: 1¼" (32mm) Basin Waste Size, UK Limits & Checklist

The standard basin waste size is 1¼" (32mm) threaded waste, and that fits almost every basin you’ll find in a typical home. Size up to 40mm only when the pipe run beyond the trap is long, exceeding the standard recommended maximum, or your layout demands it. Approved Document H sets both the run limits and the trap-seal depths that back this up.

TL;DR:

  • A 32mm (1¼") basin waste is standard, but size should only be increased to 40mm if the pipe run exceeds 1.7 meters or has multiple bends.
  • Confirm the waste’s outer diameter, thread size, and overflow compatibility before purchase with a quick under-basin measurement.
  • Longer runs or more complex layouts may require 40mm pipes to maintain proper flow velocity and prevent blockages.
  • Proper installation involves ensuring correct support, avoiding tight bends, and placing reducers at least 50mm beyond the trap to maintain drainage efficiency.
  • Matching the waste type to the basin’s overflow features, and verifying thread size and diameters, reduces returns and fitting errors.
Simcodirect
Find Reliable Bathroom Essentials
Browse Simco Direct for quality bathroom essentials from trusted brands, including products for practical home and commercial improvements.
Browse bathroom essentials

Table of Contents

What 32mm (1¼") means and how wastes are measured

Basin wastes get measured in a few different ways, and mixing them up is the fastest route to buying the wrong part. The thread size, usually written as 1¼" BSP, refers to the screw thread on the waste body that locks it into the basin. That’s different from the tailpiece, the short length of pipe hanging below the waste that connects into the trap, and different again from the pipe’s internal diameter, which is what actually matters for flow. Manufacturers typically label basin wastes as “1¼” / 32mm", and that figure almost always refers to the outside diameter of the tailpiece and the trap connection, not the thread pitch itself.

When you’re under the basin trying to work out what you’ve got, check these parts:

  • Waste body thread: the threaded section screwing into the basin outlet, usually 1¼" BSP.
  • Tailpiece diameter: the pipe hanging below the waste, typically 32mm outer diameter for basins.
  • Trap connection: the nut and olive or compression fitting joining the tailpiece to the trap.
  • Overflow slot: present if your basin has a built-in overflow channel.

Get these four points confirmed and you’ll know exactly what to order, whether you’re replacing a worn waste or adapting a trap.

When to upsize to 40mm: run lengths and building-guidance limits

Approved Document H gives the clearest practical rule for choosing pipe size: a 32mm basin waste run should be no longer than about 1.7 metres from the trap to the point it joins the main stack or branch. Beyond that distance, the guidance allows the pipe diameter to increase to 40mm, which extends the permitted run to roughly 3 metres. The trap itself stays at 32mm regardless. You increase the pipe diameter beyond the trap tail, never the trap connection, because a larger trap undermines the flow velocity that keeps the waste clear.

Maximum basin waste run lengths: 32mm pipe is limited to about 1.7 metres, while 40mm pipe extends that to roughly 3 metres, according to Approved Document H. That difference matters most in bathrooms where the basin sits a long way from the soil stack or where pipework has to snake round a stud wall.

A few things push a job towards 40mm even when the raw distance looks borderline:

  • Multiple bends: each 90-degree bend adds resistance, so a run with several bends behaves like a longer one.
  • Shallow gradient: a flatter fall needs more help from pipe diameter to keep flow moving.
  • Shared branches: if more than one appliance feeds the same pipe run, a wider diameter copes better with combined flow.

As a quick decision rule: measure from the trap tail to the connection point, and if that distance is under 1.7 metres, 32mm is correct; if it’s longer, or the run has awkward bends, go to 40mm downstream of the trap.

How to measure the waste and tailpiece to confirm size before you buy

Before ordering a replacement, a five-minute check under the basin saves a return trip to the shop. You’ll need a tape measure or vernier calliper, a torch, and your phone camera.

  1. Measure the outer diameter of the tailpiece where it enters the trap.
  2. Measure the inside diameter of the waste pipe itself, not just the fitting around it.
  3. Check the threaded boss on the waste body, looking for stamped markings such as “1¼”" or “32mm”.
  4. Confirm whether the basin has an overflow channel, since this affects which waste style you need.
  5. Photograph the assembly from two angles before removing anything, so you have a reference if the new part doesn’t seat correctly.

Pro Tip: Take the old waste or trap with you to the shop, or have your under-basin photos ready on your phone, so you can match threads and diameters side by side rather than guessing from memory.

Common basin-waste types and overflow compatibility

Basin wastes beside overflow opening

Basin wastes aren’t interchangeable just because they share the same 32mm diameter. The first split is slotted versus unslotted: a slotted waste has a cut-out channel that lines up with the basin’s overflow hole, letting excess water drain away safely, while an unslotted waste is solid and only suits a basin with no overflow. Fitting the wrong one either blocks the overflow path or leaves a gap that lets water seep where it shouldn’t.

Beyond that, the closing mechanism varies:

  • Click-clack (push-button): press once to close, press again to release, no visible plug.
  • Flip-top or pop-up: a lever or twist mechanism raises and lowers a small plug.
  • Captive or anti-tamper: designed for commercial washrooms, preventing the plug from being removed.
  • Plug-and-chain: the traditional rubber plug on a chain, simple and cheap to replace.
  • Freeflow: no closing mechanism at all, just a grate, often used where basins aren’t meant to hold water.

Flush-grated wastes, which sit level with the basin floor and have no raised plug, allow the trap’s water seal to drop to 50mm instead of the usual 75mm, as Approved Document H sets out. That’s a specific exception for certain spray-tap and flush-grated basins, not a general rule, so standard basins with a plug still need the full 75mm seal.

Installation and troubleshooting: gradients and avoiding blockages

Basin wastes drain by gravity, and the speed of that flow, known as self-cleansing velocity, is what stops soap scum and hair building up inside the pipe. Too wide a pipe for a short run, or too shallow a gradient, slows the water down and lets debris settle rather than wash through. That’s why guidance keeps the trap at 32mm rather than defaulting to a wider pipe everywhere.

A few checks catch most installation faults early:

  • Support and clips: pipework should be clipped at regular intervals so it doesn’t sag and create a low point where water pools.
  • Rodding access: leave access at bends and changes of direction so a blockage can be cleared without cutting pipework.
  • Avoid tight bends: use swept fittings rather than sharp 90-degree elbows where possible.
  • Reducer placement: if stepping up from 32mm to 40mm, start the wider pipe at least 50mm beyond the trap tail, never at the trap itself.

Pro Tip: If a basin drains slowly despite a clear trap, check the gradient with a spirit level before assuming the pipe is blocked, a flat or reverse fall is a common hidden cause. Persistent slow drainage after checking gradient and clearing the trap usually means it’s time to call a plumber, particularly if water is backing up into other fixtures.

Our pre-purchase checklist for basin wastes

We put together a short checklist drawn from the fitting questions customers ask us most: measure the thread size and tailpiece diameter, check whether your basin has an overflow before choosing slotted or unslotted, and photograph the under-basin assembly before you remove anything. Our guide on basin waste types and how to avoid returns walks through each of these checks in more detail. Run through that list before you order and you’ll cut the chance of sending a part back.

— Carl

Find the right basin waste and fittings

We offer a broad range of bathroom essentials, including basin wastes, seals and overflow-compatible fittings.

Simcodirect

Before you order, a couple of quick checks save a second trip:

  • Match the thread size: confirm 1¼" BSP against your basin outlet before buying.
  • Confirm overflow compatibility: slotted wastes only work with basins that have an overflow channel.
  • Call if unsure: our customer service team can help identify odd or older fittings.

If damp or leaks around a basin waste have already caused staining nearby, our partners at Quay Point Plastering cover practical fixes for bathroom mould that keeps coming back. Browse our bathroom essentials range to find a compatible waste for your basin.

FAQ

Are all basin wastes 32mm?

Most basin wastes are 1¼" (32mm), which is the standard size set out in Approved Document H for washbasin traps and pipework. Some basins with longer pipe runs use 40mm downstream of the trap, but the trap connection itself stays at 32mm.

Is my waste pipe 32mm or 40mm?

Basin waste pipes are almost always 32mm, while bath and sink wastes are typically 40mm because they need to clear larger volumes of water faster. Measure the tailpiece’s outer diameter at the trap connection to confirm which you have.

What size is a standard basin waste?

A standard basin waste is 1¼" (32mm), the size specified in Approved Document H alongside a 75mm trap water seal for basins fitted with a plug. Flush-grated wastes without a plug can use a shallower 50mm seal.

Can you get a 40mm basin waste?

Yes, 40mm basin wastes exist and are used when the pipe run beyond the trap exceeds roughly 1.7 metres, extending the permitted run to about 3 metres under Approved Document H. The trap connection should still be 32mm, with the wider pipe starting just beyond the trap tail.
