Collection: Undersink Water Heaters

14 products

Under sink water heaters, often referred to as point-of-use heaters, are compact appliances designed to provide hot water directly at a single location, such as a kitchen or bathroom sink. Their primary purpose is to eliminate the long wait for hot water to travel from a central water heater, saving both water and energy. The categories of under sink water heaters are primarily defined by their heating method and pressure system.

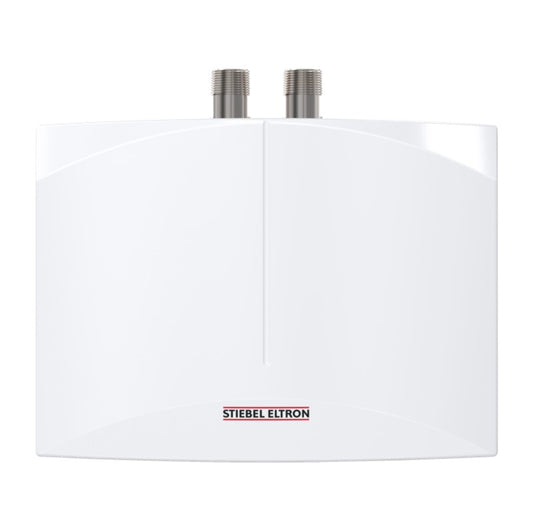

1. Instantaneous (Tankless) Under Sink Water Heaters

These units are the most compact type of under sink heater. They heat water on demand as it flows through the unit, eliminating the need for a storage tank.

  • How they work: When a hot water faucet is turned on, a sensor detects the flow of water and activates a powerful electric heating element. The water is heated instantly as it passes over the element, providing a continuous supply of hot water for as long as the tap is open.
  • Key Features:
    • Space-Saving: Their small size allows for easy installation in tight spaces under sinks.
    • Energy Efficiency: They only use electricity when hot water is being drawn, which eliminates standby heat loss.
    • Power Output: Typically have a low to medium power output (3 kW to 6 kW) suitable for a single point of use.
  • Limitations: The flow rate is limited by the unit's power output. If the flow is too high, the water may not get hot enough.

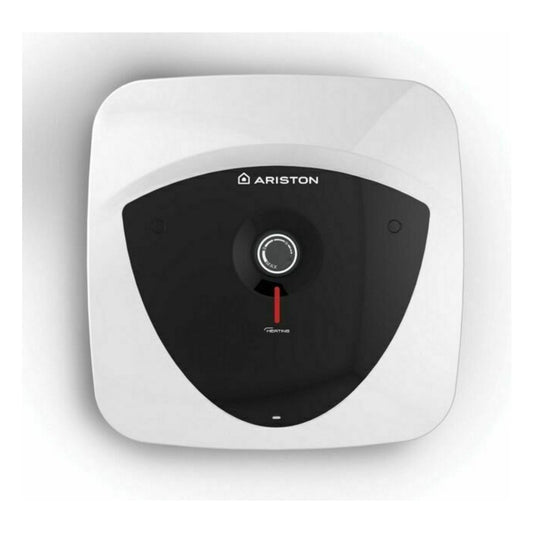

2. Storage Under Sink Water Heaters

These are mini-tank or conventional-style water heaters designed to hold and heat a small volume of water.

  • How they work: The unit contains an insulated tank where water is heated and kept at a set temperature by a thermostat and electric heating element. When hot water is used, the tank refills with cold water, which is then heated.
  • Capacities: Typically range from 2.5 to 15 gallons (10 to 60 liters).
  • Key Features:
    • Ready Hot Water: Provides a small reservoir of hot water instantly, making it a good choice for frequent, low-volume use.
    • Simple Installation: Many models can be plugged into a standard electrical outlet.
    • Pressure Systems: Available in both vented (requiring a specific vented tap) and unvented (sealed and usable with standard taps) designs.
  • Limitations: The supply of hot water is limited by the tank's capacity. Once the tank is empty, you must wait for it to reheat. They also have a small amount of standby heat loss.

3. Integrated Tap Water Heaters

This is a sub-category that combines the heating unit with a dedicated faucet, providing a complete all-in-one solution for a single sink.

  • Key Features:
    • Aesthetic Design: The heating unit and tap are coordinated, providing a clean and modern look.
    • Temperature Control: The tap often includes a control for adjusting the water temperature.
    • Application: Perfect for single washbasins or kitchenettes where simplicity and a quick installation are desired.

Under sink water heaters are primarily chosen for their convenience, energy-saving potential by reducing waiting time for hot water, and their ability to be installed in locations where a connection to a central hot water system is impractical or undesirable.

FAQs

  • How do I choose between an instant (tankless) and a storage (mini-tank) under sink water heater?

    The choice depends on your specific needs:

    • Instantaneous: Best for low-volume, continuous use. They are more energy-efficient because they only heat water on demand. They're ideal if you need a quick burst of hot water for washing hands or filling a glass, but their flow rate is limited, so they may not be suitable for filling a large sink quickly.
    • Storage: Best for higher-volume, intermittent use. They have a small tank that holds a ready supply of hot water. They're great for filling a sink with hot water for washing dishes. The downside is that the hot water supply is limited by the tank's size, and there is a small amount of standby heat loss.
  • Can an under sink water heater supply hot water to more than one faucet?

    It is generally not recommended. Under sink water heaters are specifically designed as "point-of-use" devices for a single faucet or a very small number of closely located outlets. Trying to supply hot water to multiple faucets can overwhelm the unit's capacity, leading to a significant drop in water temperature and pressure. For a full bathroom or kitchen, you should consider a larger, whole-house water heater.

  • Do under sink water heaters need professional installation?

    While some mini-tank models can be plugged into a standard electrical outlet and are relatively easy to install, it is always recommended to have a qualified plumber or electrician perform the installation. This is especially true for tankless models, which often require a dedicated circuit and high-amperage wiring. Professional installation ensures the unit is safely and correctly connected to both the water and electrical supply, and that it complies with all local building codes.

  • Why is the hot water from my under sink heater not lasting long enough?

    If you have a storage (mini-tank) model and the hot water runs out too quickly, the most likely reason is that the tank's capacity is too small for your usage. For example, a 2.5-gallon unit is great for hand washing but may not be sufficient for washing a large number of dishes. In this case, you may need to upgrade to a larger tank. A less common cause could be a failed heating element or a thermostat set too low.

  • How much can an under sink water heater save me on my utility bills?

    Under sink water heaters can save you money in two ways. First, they eliminate the "water waste" of letting the tap run while you wait for hot water to arrive from a central heater. Second, they reduce the energy lost from long pipe runs. The savings are most significant in homes where the central water heater is far from the sink, and you frequently use small amounts of hot water. While a storage model has a small standby loss, an instantaneous model has no standby loss at all, making it a very efficient choice for point-of-use applications.
