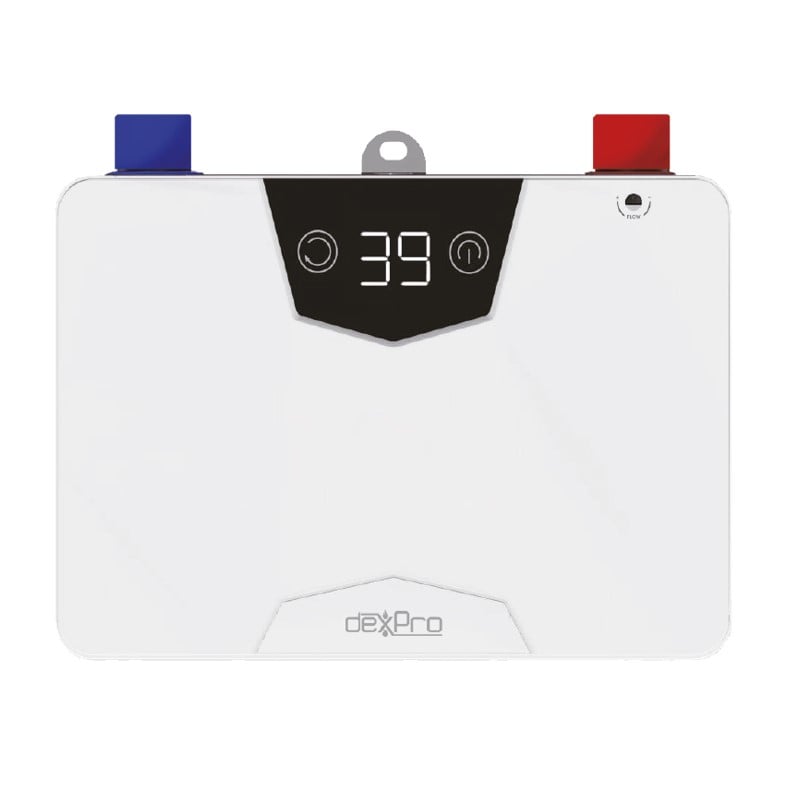

DexPro Delux Inline Instantaneous Water Heater

DexPro Instantaneous Under Sink Water Heater

3.5kW or 5.5kW

The Delux instantaneous water heaters are ideal for use where space is a premium and hot water is needed for hand washing in commercial applications such as offices, shops, factories, schools/universities, hospitals, and modular buildings.

The temperature rise from ambient is controlled by the water flow rate, faster = cooler so it is recommended that a flow restriction/spray head tap nozzle is used to attain the required performance and temperature. 3.5kW <2lpm and 5.5kW <3lpm max flow.

As water temperatures vary depending on the time of year, winter may result in incoming temperatures of 10°C or below and summer water temperatures can be upwards of 15°C. This needs to be taken into account when checking the delivered temperature.

As an example, the unit could deliver 49°C water in the summer (incoming water at 15°C) v’s 44°C in winter (incoming water at 10°C), based on a flow rate of 1.5 litres per minute. Please note, that this temperature could be lower if the incoming water supply is less than 10°C.

360° installtion. This unit can be installed in any orientation, including horizontally mounted.

Features:

• Instant hot water for handwashing
• 3.5kW or 5.5kW
• Rapid heat response time
• Compact stylish design
• Adjustable flow control
• Digital temperature display
• Accurate digital temperature control
• 1/2" inlet / outlet connections
• Supplied with ½ inch brass connection adaptors
• Recommended for use with spray head taps to attain desired water temperature
• ERP Energy rating A
• CE approved
