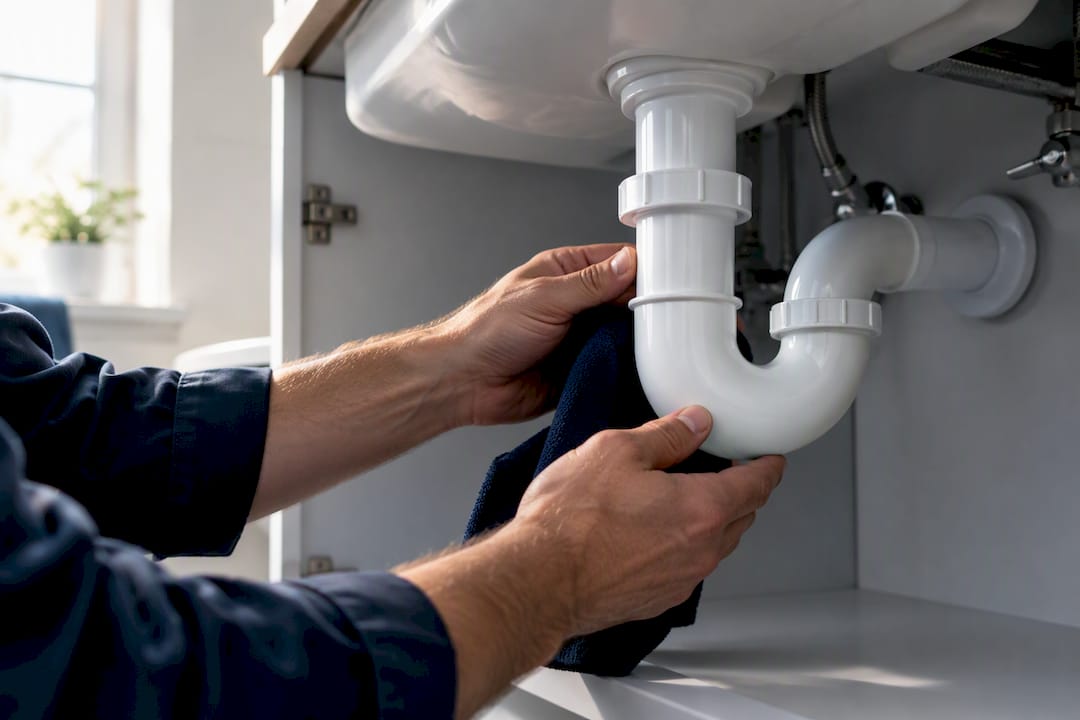

Plumber inspecting basin waste trap

75mm Seal Rule: Bottle Trap vs P Trap for UK Bathrooms

For kitchen sinks and anything shifting food waste or heavy flow, fit a P-trap. For a compact, visible washbasin where cupboard space is tight, a bottle trap usually wins. Either choice must hold the minimum water seal set out in Approved Document H and stay accessible for clearing blockages, so the “right” trap always depends on where it sits and who needs to service it.

TL;DR:

  • P-traps handle greasy and solid waste better, making them suitable for kitchen sinks with waste disposers and heavy daily use.
  • Bottle traps are ideal for exposed, space-constrained washbasins in vanity units or wall-hung setups, with quick, tool-free maintenance.
  • Both traps must meet minimum seal depths—75mm for washbasins and 50mm for baths—per UK building regulations, and require proper access for maintenance.
  • Avoid using bottle traps for food waste or grease-laden sinks, as their narrower internal path risks clogging and siphoning issues.
  • Correct installation involves matching trap diameter to pipe size, maintaining at least 90mm vertical drop for P-traps, and ensuring accessible, correctly fitted seals.
Simcodirect
Complete Your Bathroom Upgrade
Simco Direct supplies trusted bathroom essentials, including stylish towel rails, designer radiators and efficient electric heaters.
Visit Simco Direct

Table of Contents

Bottle trap vs P-trap: the key differences at a glance

The two designs solve the same problem, keeping foul air out of your home, in different ways. Here is where they actually diverge:

  • Flow capacity and clogging risk: P-traps have a smoother, wider bore that copes better with food scraps and grease; bottle traps have a narrower internal path around the dip tube, so debris collects faster.
  • Space requirement: Bottle traps take up less depth and suit shallow pedestal basins or vanity units with limited clearance; P-traps need more vertical drop and horizontal run.
  • Aesthetics and visible finish: Bottle traps are designed to be seen, with chrome or brushed finishes that match modern basin fittings; P-traps are typically hidden inside a cabinet.
  • Maintenance accessibility: A bottle trap’s bowl unscrews by hand for quick cleaning; a P-trap usually needs a spanner or a dedicated cleaning eye.
  • Compliance implications: Both must meet the seal depth requirements set out in Approved Document H, and both need to be removable or fitted with an access point.

One point trips up a lot of DIYers: bottle traps are intended for washbasins only, not sinks or appliances handling food waste, unless the product is specifically rated as an anti-siphon variant for that use, according to technical installation guidance. Before buying either type, check the trap diameter against your waste pipe (usually 32mm for basins, 40mm for sinks) and confirm the seal depth matches the appliance you’re fitting it to.

How a P-trap works and where it earns its keep

A P-trap gets its name from the shape, a tubular bend that looks roughly like the letter P lying on its side, with water sitting in the curve to block sewer gas from travelling back up the pipe. That water seal is the entire point of any trap, and the P-trap’s wide, consistent bore means water moves through fast enough to carry solids with it rather than letting them settle.

How a P-trap works and where it earns its keep — overview diagram

That geometry is why plumbers reach for a P-trap by default wherever flow and debris are a factor. Trade guides note that P-traps are tubular U-bends offering better flow and lower clogging risk, which is exactly what a kitchen sink or a basin feeding a shaver socket outlet needs. Standard sink connections run at 40mm diameter with a 75mm seal depth, giving enough capacity for a waste disposal unit or a sink handling greasy pans most evenings.

Installing one properly comes down to a short sequence:

  1. Confirm the waste outlet size (32mm for most basins, 40mm for sinks) and buy a trap to match.
  2. Check there’s enough vertical drop, typically at least 90mm, between the outlet and the horizontal branch pipe.
  3. Fit the trap with the cleaning eye facing outward and accessible, not jammed against a cabinet wall.
  4. Use compression joints with the correct washers at both ends rather than relying on friction alone.
  5. Connect to the soil pipe or waste disposal outlet, then run water and check every joint for weeping before closing up the cabinet.

If a sink discharges food waste or feeds a disposal unit, stick with a P-trap sized correctly for the load and think about grease management upstream, because a bottle trap will clog quickly under that kind of use.

How a bottle trap works and when it’s the smarter pick

A bottle trap stands the water seal on end: waste drops into a vertical cylindrical bowl, and a dip tube inside forces it down and back up before it exits, trapping water in the bowl in the process. The base unscrews as one piece, which is the whole appeal for anyone who wants a trap they can clean without tools.

That vertical layout suits basins in tight vanity units or pedestals where there’s barely room to swing a wrench, and it explains why installers commonly choose bottle traps for exposed basins where appearance and minimal cupboard space matter, according to Plumbing Superstore’s installation guidance. Chrome, brushed nickel and matte black finishes are common because the trap is often on show under an open pedestal or a wall-hung basin with no cabinet to hide it.

Fitting one is straightforward but has a few traps of its own (pun intended):

  • Hand-tighten the bowl onto the body; a spanner risks distorting the tapered seal inside.
  • Check the seal washer sits square before you tighten, since a twisted seal is the most common cause of a slow drip weeks later.
  • If the installation faces long branch runs or negative pressure risk, ask about an anti-siphon bottle trap rather than a standard model.
  • Decorative bottle traps with visible brass or copper finishes exist for period bathrooms where a plain white trap would look out of place.
  • Never fit a bottle trap under a kitchen sink handling food waste. It wasn’t designed for that load and will block far sooner than a P-trap.

A cloakroom basin with a slimline vanity unit, a wall-hung basin with an exposed trap as a design feature, or a loft conversion bathroom where pipe runs are tight are all classic scenarios where a bottle trap is the practical, and often the only sensible, choice.

Weighing the pros and cons before you commit

Neither trap wins on every measure, so the decision comes down to which trade-offs matter most for your installation.

P-trap advantages:

  • Handles higher flow and food debris without clogging as readily.
  • More robust under sustained heavy use, which suits busy kitchens and shared bathrooms.
  • Widely compatible with waste disposal units and standard 40mm sink outlets.

P-trap disadvantages:

  • Needs more space, both vertically and horizontally, which can rule it out under shallow basins.
  • Visible pipework looks utilitarian, so it’s normally boxed in or hidden in a cabinet.

Bottle trap advantages:

  • Compact footprint fits tight vanity units and pedestal basins.
  • Stylish finishes make it a feature rather than something to hide.
  • The removable bowl means cleaning takes minutes with no tools.

Bottle trap disadvantages:

  • Narrower internal path around the dip tube raises siphonage risk on some installations.
  • Not suitable for sinks with food waste or disposal units.

On materials, chrome-plated brass bodies dominate the mid-to-premium range for both trap types and tend to outlast plastic equivalents, particularly where the trap sees frequent hand-tightening. Budget plastic traps are lighter and cheaper but the threads wear faster, so if you’re reassembling a bottle trap every few months for cleaning, brass is worth the extra cost.

Pro Tip: Never box a trap in completely. Whichever type you fit, leave an access panel or a removable section of pipe boxing so a blocked trap doesn’t mean ripping out tiling to reach it.

Installation and space checklist before you buy

Get the measurements right before you order parts, because a trap that doesn’t fit the available drop is the single most common reason for a return.

Take these measurements first:

  1. Clearance below the basin or sink outlet: measure from the underside of the appliance to the floor of the cabinet or the point where the waste pipe exits the wall.
  2. Offset to the soil pipe or waste stack: note both the horizontal distance and any change in height, since a bottle trap’s vertical profile eats more of your available drop than a P-trap’s lower-profile bend.
  3. Trap and waste diameter: 32mm for most basins, 40mm for kitchen sinks and baths.

Parts needed for a watertight join typically include a top-hat washer at the basin outlet, a tapered seal inside the trap connection, and a compression nut to draw the joint tight without over-torquing the plastic thread. Assemble in that order, seal against the outlet first, then hand-tighten the compression nut, and only then check for movement.

A cleaning eye or removable trap section is mandatory wherever the appliance itself can’t be lifted clear for cleaning, which covers nearly every fixed basin and sink installation. Where branch runs are long or complex, NHBC and Building Regulations guidance point to branch ventilation or an air admittance valve to stop negative pressure pulling the seal dry.

To swap a trap safely: turn off any isolation valve, place a bucket underneath, loosen the compression nuts by hand, replace like-for-like on diameter, then test with a full basin of water before refitting any boxing. If the existing pipework is corroded, misaligned, or you find signs of a previous leak in the cabinet, call a plumber rather than forcing a new trap onto old fittings.

Keeping traps clear: routine maintenance that actually works

Bottle traps and P-traps fail for different reasons, so the maintenance routine for each looks slightly different.

To clean a bottle trap, place a bucket underneath, unscrew the bowl by hand, tip out the debris, rinse the dip tube, and check the seal washer for cracking or flattening before reassembling. Reseal by hand-tightening only, then run the tap for a minute and check the joint for drips.

Clearing a P-trap depends on the fault. A simple hair or grease blockage often clears with a flexible cleaning tool fed through the cleaning eye, but a fully packed trap usually means loosening the compression nuts and removing the whole U-bend to flush it out over a bucket.

Common faults worth knowing:

  • Over-tightened bowl: distorts the tapered seal and causes a slow weep. The fix is a new seal, hand-tightened.
  • Degraded tapered seals: rubber perishes over years, especially near heating pipes. Replace rather than repack.
  • Hair and grease build-up: the leading cause of slow-draining basins and sinks alike. A monthly flush with hot water and washing soda helps between full cleans.

Pro Tip: After any reassembly, run the tap for a full two minutes and check every joint with a dry piece of kitchen roll. A slow leak shows up as damp paper long before it shows as a drip on the floor.

What UK building regulations actually require

Approved Document H sets the baseline every installation has to meet, and it’s more specific than most people expect. It requires traps to hold a minimum water seal of 25mm under test conditions, with appliance-specific depths on top of that: 75mm for a washbasin, and 50mm for a bath or shower, according to the official Approved Document H (2015).

Key requirements to check before you sign off an installation:

  • Minimum seal depths: 75mm for washbasins, 50mm for baths and showers, both measured under the test conditions the document sets out.
  • Removability or a cleaning eye: NHBC guidance states plainly that traps must be removable, or fitted with a cleaning eye, wherever the appliance itself isn’t removable for access.
  • Anti-siphon measures: where branch runs are long or complex, branch ventilation or an air admittance valve protects the seal from being pulled dry by negative pressure.
  • Accessibility for local authority sign-off: local authority guidance echoes the same seal depths and explicitly flags anti-siphon bottle traps as an acceptable option where access is otherwise restricted.

The technical tables sit inside Approved Document H itself, and if your installation involves anything unusual, a shared soil stack, an extended branch run, or a basement conversion, it’s worth a call to your local building control officer before you commit to parts.

Decision checklist: what to ask before you buy

Run through this four-step flow before choosing a trap:

  1. Identify the appliance: kitchen sink, washbasin, bath, or shower each carries a different seal depth requirement and flow expectation.
  2. Measure the space: clearance below the appliance and offset to the waste pipe rule out one type before you even look at finishes.
  3. Assess flow and load: food waste, grease, or a disposal unit means a P-trap; a basin with hand-washing only opens up the bottle trap option.
  4. Check maintenance access: if there’s no room to remove a boxed-in P-trap, a bottle trap’s hand-removable bowl may be the safer long-term choice.

When you’re talking to a supplier or plumber, ask about trap diameter against your existing pipework, whether the bowl or U-bend is removable without tools, whether a cleaning eye is fitted, the finish options available, and what warranty covers the seals specifically, since seals fail well before the body of the trap does.

Watch for red flags: a trap boxed in with no access panel, mismatched plastic and metal threads forced together, or a seal that looks flattened or cracked on inspection.

Scenario Recommended trap
Kitchen sink with waste disposal P-trap
Bathroom washbasin, exposed pedestal Bottle trap
Basin in a tight vanity unit Bottle trap
Utility room sink with heavy use P-trap
Period bathroom, decorative fittings visible Bottle trap (anti-siphon variant if needed)

What installers get wrong most often

Overtightening is the mistake I see repeated more than any other, and it’s almost always well-intentioned. Someone worries a bottle trap bowl looks loose, gives it an extra half turn with a wrench instead of a hand, and distorts the tapered seal inside. Six weeks later there’s a damp patch in the cabinet and nobody remembers touching the trap.

The second recurring problem is access. A trap fitted correctly on day one becomes a nightmare the day it blocks, because someone boxed it in with fixed tiling or a permanently glued access panel. NHBC’s own guidance on this point is unambiguous: accessibility for clearing blockages is often the decisive factor in whether a trap causes recurring service calls or none at all.

Wrong diameter is the third classic error, usually from reusing an old trap on a new basin without checking the outlet size matches. It seems to fit, then leaks under pressure. Measure twice, buy once, and always leave a way back in.

— Carl

Where to find the right trap parts and fittings

Choosing between a bottle trap and a P-trap only solves half the problem. Getting a watertight, compliant fit means sourcing the correct waste, seals and compression fittings to match, and that’s where a lot of DIY installations come unstuck on parts rather than principle. There are retailers that stock basin wastes, replacement seals and compression fittings alongside a wider bathroom range, often offering fast UK delivery and a returns policy for incorrect part sizes.

Simcodirect

Trade customers fitting multiple bathrooms often have access to fast turnaround times and support on bulk orders, which matters when specifying trap types across several units on one job. Browse the full bathrooms range to match wastes and fittings to whichever trap you’ve settled on, or head straight to the basin waste guidance if you’re still working out which seal type your installation needs before placing an order.

Sources

FAQ

Yes, bottle traps are legal provided they meet the minimum water-seal depth for washbasins set out in Approved Document H, which is 75mm, and remain accessible for cleaning. They must not be used on kitchen sinks or waste disposal units unless specifically rated for that application.

What are the disadvantages of bottle traps?

Bottle traps have a narrower internal path around the dip tube than a P-trap, which raises the risk of clogging and, in some installations, siphonage under negative pressure. They’re also unsuitable for kitchen sinks handling food waste or grease, where a P-trap performs far better.

Is a bottle trap illegal to fit under a kitchen sink?

It isn’t automatically illegal, but standard bottle traps aren’t designed for the flow and debris load a kitchen sink produces, and trade guidance consistently recommends bottle traps for washbasins only. A P-trap is the appropriate and more reliable choice for kitchen sink installations.

What is a bottle trap used for?

A bottle trap is used on washbasins, particularly in pedestal units or tight vanity cabinets, where its vertical design saves space and its removable bowl makes cleaning simple. It’s also a common choice for exposed, decorative installations where the trap itself is visible beneath the basin.

Do I need a plumber to swap a trap, or can I do it myself?

Straightforward like-for-like swaps, matching the existing diameter and appliance type, are within reach for a competent DIYer with basic tools. Call a plumber if you find corroded pipework, an unusual branch run, or any sign of a previous leak inside the cabinet, since those issues need diagnosis before a new trap will hold.
