Hyco Handyflow Oversink 5L Vented Water Heater

The Hyco Handyflow HF05LM 5L Oversink Water Heater is a compact and practical point-of-use water heating solution designed to provide hot water to a single sink. Featuring a slimline 180mm depth, 2.0kW heating element and 5-litre capacity, it is ideal for occasional light dishwashing in workplaces and small commercial premises, including portable buildings, offices, shops, workshops and garages.

Compact Hot Water Solution for Single Sinks
Designed as an open outlet, non-pressurised water heater, the Handyflow provides a straightforward solution where hot water is required at an individual sink. Its compact design and 5-litre polypropylene tank allow it to be installed neatly above a sink, while the supplied tap and chrome spout provide everything required for operation.

Efficient Heating with Adjustable Temperature Control
The HF05LM features a 2.0kW copper-sheathed heating element capable of heating the water quickly, with a minimum theoretical heat-up time of approximately 6 minutes for 70% of the tank capacity from 10°C to 60°C. An external temperature control allows the temperature to be adjusted to approximately 80°C, with an E setting of approximately 55°C.

Key Features & Benefits
• 5 Litre Capacity – Suitable for occasional hot water requirements at a single sink
• Vented Point-of-Use Design – Open outlet, non-pressurised system
• 2.0kW Heating Element – Provides efficient water heating

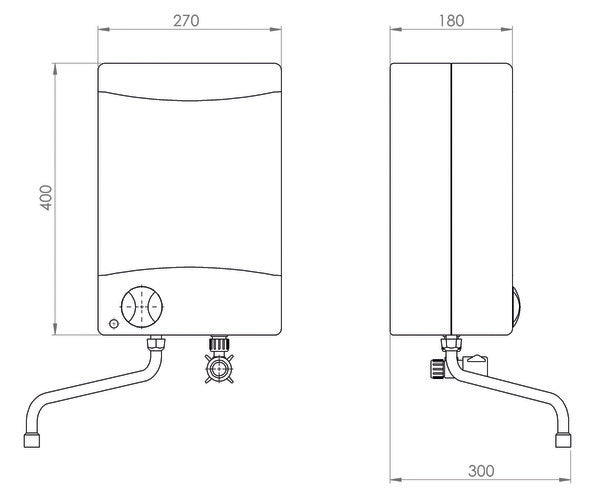

• Slimline 180mm Depth – Compact design for space-conscious installations
• Supplied Tap & Chrome Spout – Includes the required tap and spout for operation
• 6-Minute Heat-Up Time – Minimum theoretical heat-up time for 70% tank capacity from 10°C to 60°C
• Adjustable Temperature Control – Capillary thermostat adjustable to approximately 80°C
• E Setting – Provides an approximate 55°C temperature setting
• Frost Protection – Helps protect the unit when power is switched on
• Re-Settable Thermal Cut-Out – Safety feature can be reset rather than replaced
• Neon Heating Indicator – Shows when the heating element is operating
• Wall Fixing Bracket Included – Allows straightforward installation above a sink
• 1m Pre-Wired Cable – Supplied ready for electrical connection
• Polypropylene Water Tank – Durable and lightweight tank construction
• High Impact Plastic Casing – Easy-clean outer casing
• No Expansion Vessel Required – Suitable for straightforward vented installation
• No Relief or Reducing Valve Required – Simplifies installation requirements
• IP24 Rated – Designed for suitable bathroom and washroom electrical environments
• CE & UKCA Approved – Meets applicable product conformity requirements

Designed for Small Commercial Premises
The Hyco Handyflow HF05LM is particularly suited to locations where hot water is required occasionally rather than continuously. Its compact design makes it suitable for portable buildings, offices, shops, workshops, garages and other small commercial premises where space is limited.

The unit must be installed above a sink using the supplied wall fixing bracket, with the tap and spout positioned at the bottom of the unit.

Safe Vented Operation
The Handyflow operates as an open outlet, non-pressurised system. The supplied tap and spout must be used to ensure the unit is not pressurised. A re-settable thermal cut-out provides additional protection, while the frost protection setting can help protect the unit when power is switched on.

As with other vented water heaters of this type, it is normal for the spout to drip slightly during the heating cycle. This is caused by water expanding as it heats.
